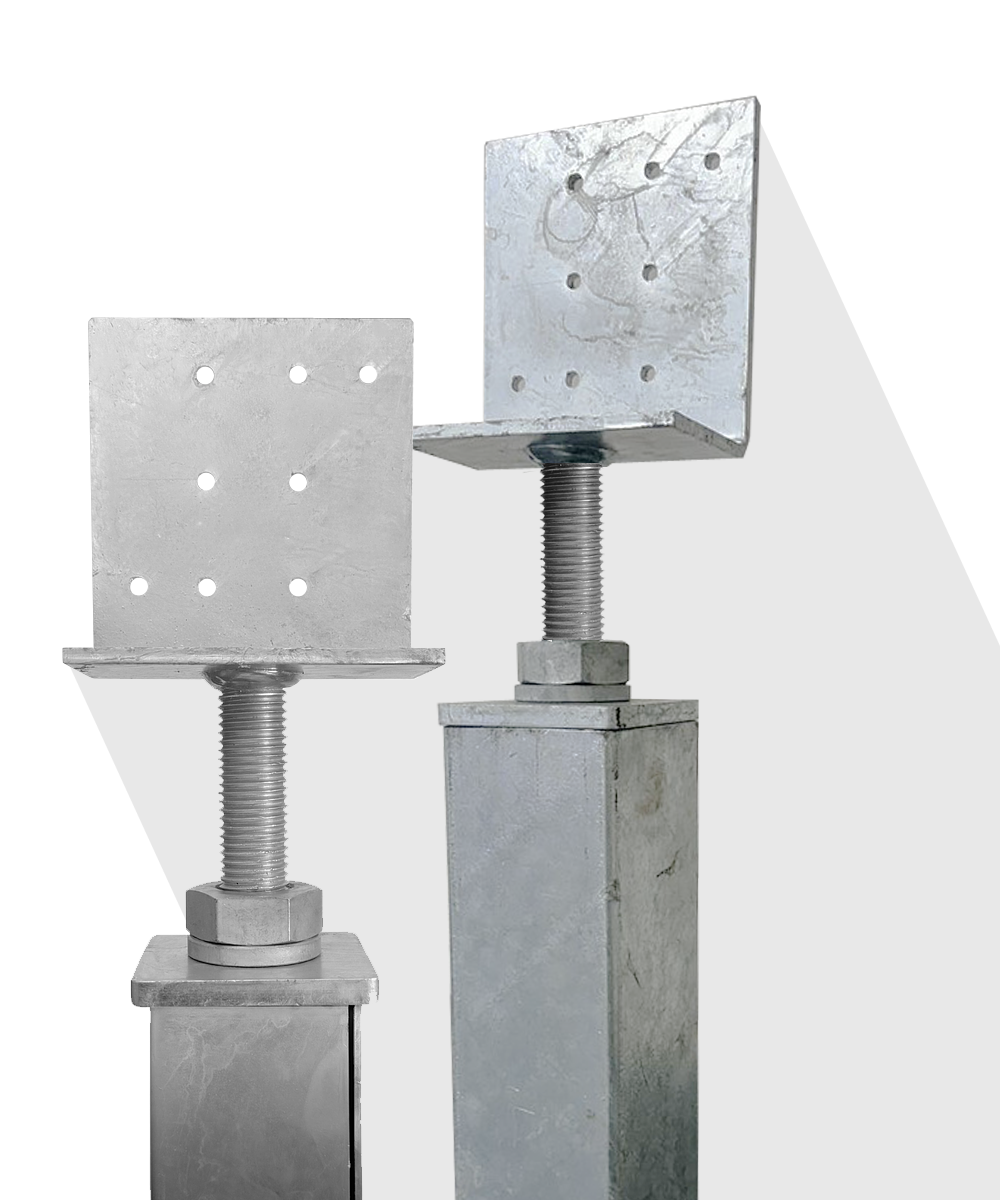

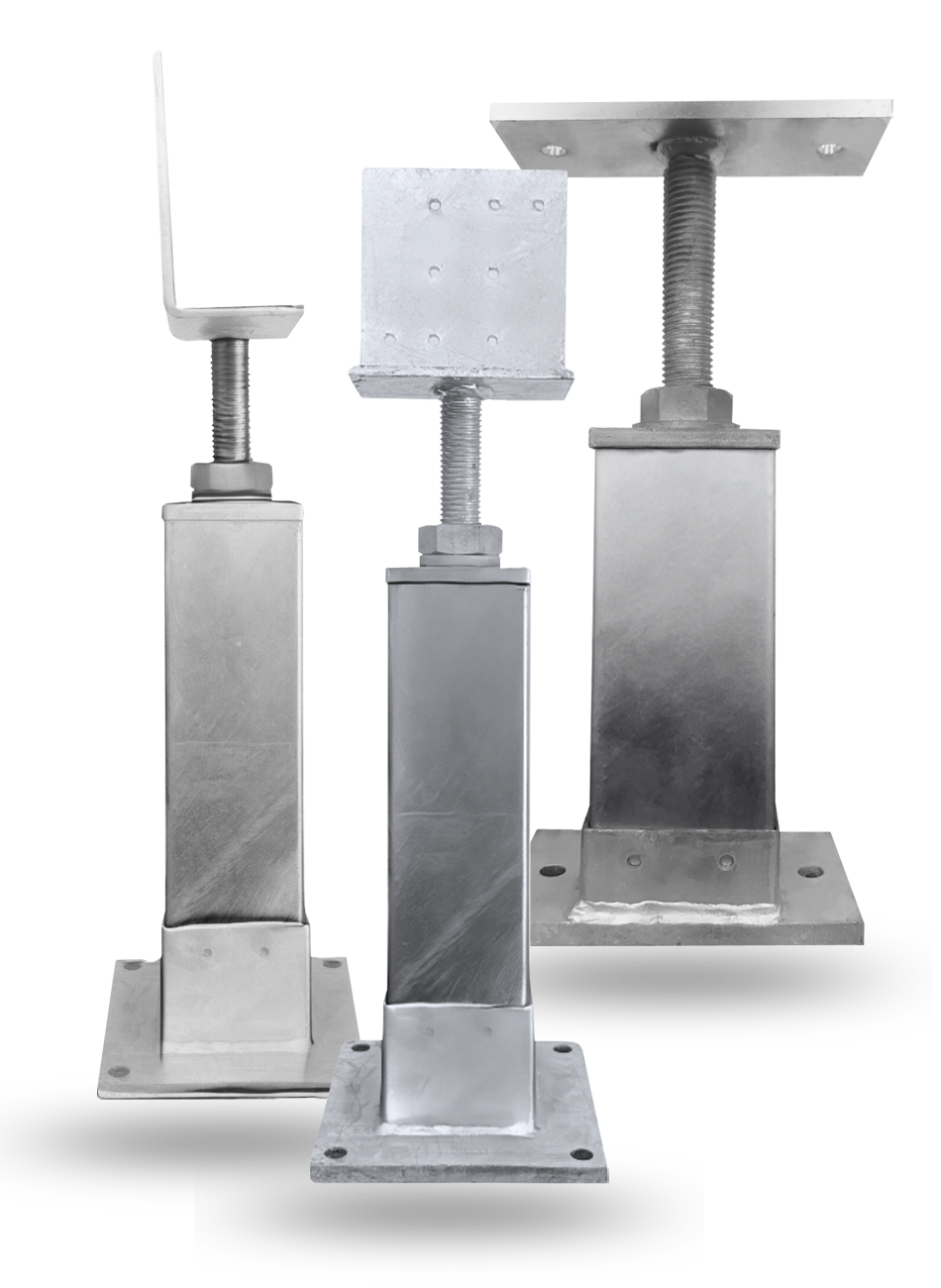

Adjustable
Steel Stump Kit
Hot-dip galvanised, precision adjustable foundation support
- Micro-level leveling during installation
- Built-in adjustability to correct for settlement over life of building
- Durable galvanised steel finish, certified
- Reduces labour, time & rework
Why Choose Adjustable Steel Stumps?
Traditional fixed stumps create costly problems. Our adjustable system provides the solution.
iBuild's Adjustable Steel Stump Solution
- Differential adjustment (micro-level) during installation
- Future adjustability over the life of the building
- Hot-dip galvanised steel-resistant to corrosion
- Engineered to accept known structural loads
- Compatible with iBuild's kit home system
Problems with Traditional Fixed Stumps
- Once cast/placed, they are fixed - settlement is difficult/costly to correct
- May require packing, re-stumping or disruptive lifting later
- More difficult to fine-level the subfloor
- Higher long-term maintenance costs
Features & Specifications
Engineered for precision, built for durability
Corrosion Protection
Hot-dip galvanised finish provides superior corrosion resistance and certified long-term durability.
Precision Adjustment
Micro-level adjustability during installation and future settlement correction capabilities.
Engineered & Certified
Certified for structural use with engineered load capacities for vertical, lateral, and uplift forces.
Easy Installation
Reduces labour time and eliminates need for jacks, packers, and complex leveling procedures.
System Compatibility
Seamless integration with iBuild's kit home system including frames, beams, and floors.
Future Adjustability
Ability to re-adjust individual stumps throughout the building's lifetime without major rework.
How It Works
Simple installation process, precise results
Prepare Concrete Foundation
Pour and level concrete footings/pads according to engineering specifications and site requirements. Ensure proper curing time before proceeding.
Attach Base Plate to Foundation
Position the base plate (2-hole or 4-hole option) onto the concrete footing. Secure with anchor bolts through the 14mm bolt holes. Ensure base plate is level.
Insert RHS Post into Base Plate
Slide the 90x90mm post into the base plate sleeve. Secure with 4 Tek screws to fix the post firmly in place. No welding required.
Install Top Connector & Thread
Attach the adjustable top connector to the post using 4 Tek screws. The M30 thread mechanism sits at the top with rotatable nut for height adjustment.
Attach Top Plate (L-Shaped or T-Shaped)
Select and attach your chosen top plate (L-shaped or T-shaped) to the threaded connector. This provides the interface for your bearer or joist connection.
Adjust Height by Turning Nut
Turn the rotatable nut on the M30 thread to raise or lower the stump height. Achieve micro-level precision to ensure perfect floor leveling across all stumps.
Secure & Complete Installation
Once all stumps are precisely leveled, secure the locking mechanism. Install bearers/joists to the top plates using appropriate fixings (screws or bolts through provided holes).
Complete Stump Kit Options
Flexible components to suit your specific foundation requirements
Standard Adjustable Steel Stump Features
Complete Component Kit
Adjustable stump top connectors, top plates, base plates
90 x 90 Post
Standard square hollow section post
Easy to Install
Simple installation process, minimal tools required
Easy Adjustment
Adjustment via turning of a nut
Post up to 1m
Suitable for various foundation heights, Further eng. assesment for over 1m
Available Component Options
Steel Stump Top Plates
L-Shaped Top Plate
- M30 Thread
- 7mm Screw Holes
- 6mm Thick Plate
Dimensions: 125mm H × 80mm L × 140mm W

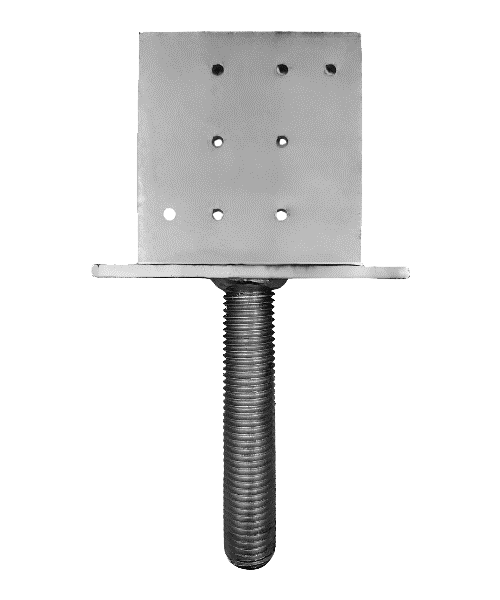

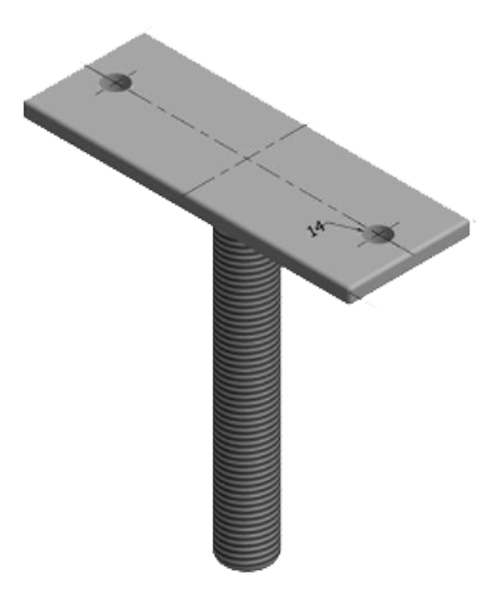

T-Shaped Top Plate
- M30 Thread
- 14mm Bolt Holes
- 10mm Thick Plate
Dimensions: 200mm × 90mm standard flat plate
Stump Base Plates

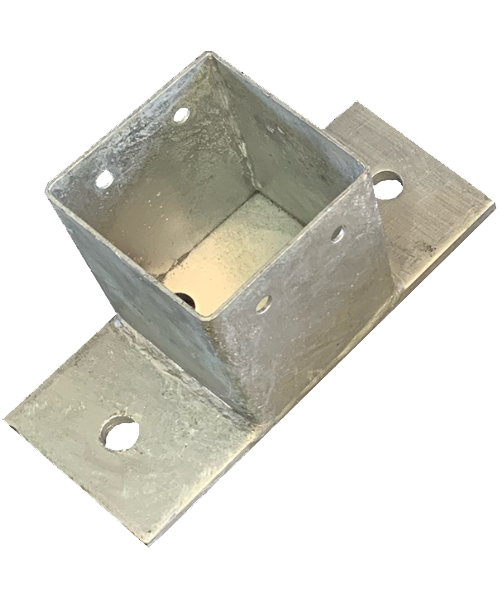

2-Hole Base Plate
- Fits 90mm × 90mm Post
- Posts sit inside sleeve
- 4 Tek screw attachment
- 14mm Bolt Holes
- 8mm Base Plate + 3mm Sleeve
Size: 180mm × 105mm × 80mm

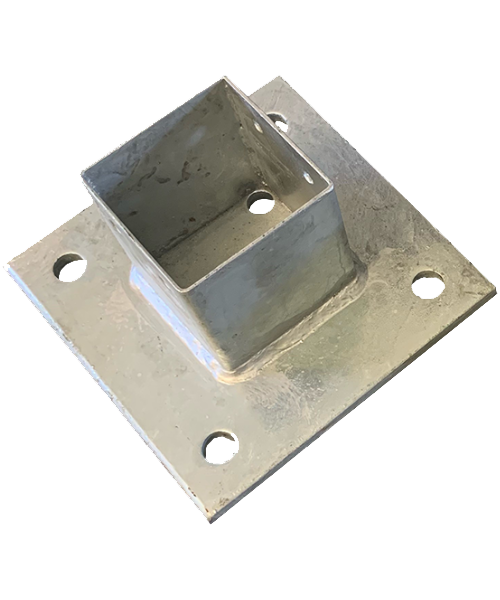

4-Hole Base Plate
- Fits 90mm × 90mm Post
- Posts sit inside sleeve
- 4 Tek screw attachment
- 14mm Bolt Holes
- 12mm Base Plate + 2mm Sleeve
Size: 180mm × 180mm × 80mm

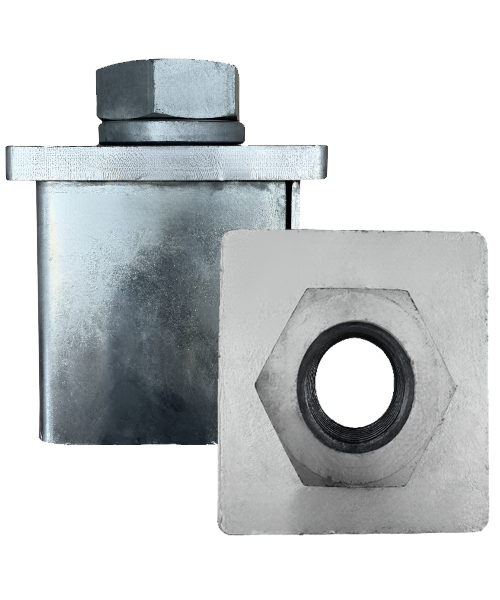

Adjustable Connectors
Hot Dipped Galvanised
Superior corrosion protection
No Welding Required
Simple installation process
4 Tek Screws
Easy security attachment
Suits 90mm SHS
Perfect fit for standard posts
10mm Top Plate
Heavy-duty construction
M30 Thread
Rotatable nut for adjustment
Note:
All components of the adjustable steel stump kit are hot dip galvanised and certified to Australian Standards
Key Benefits & Value
Why builders and homeowners choose iBuild adjustable stumps
| Benefit | Standard Stumps / Non Adjustable | iBuild Adjustable Stumps |
|---|---|---|
|
Floor Leveling |
Manual jacking, packing, approximate |
Precision micro-adjustment, exact levels |
|
Settlement Issues |
Costly re-stumping or lifting |
Simple individual adjustments |
|
Installation Time |
Multiple attempts, rework common |
Single installation, right first time |
|
Long-term Maintenance |
High cost, disruptive repairs |
Minimal maintenance, easy adjustments |
|
Durability |
Varies, corrosion concerns |
Hot-dip galvanised, certified longevity |
